Item no. | Concrete cover mm | Wall thickness mm | Ø Iron mm | Pcs Box | Pcs Pallet |
---|---|---|---|---|---|
RAZS/160S | 15 - 50 | 160 | 8 | 145 | 3.480 |
RAZS/180S | 15 - 50 | 180 | 8 | 145 | 3.480 |
RAZS/200S | 15 - 50 | 200 | 8 | 150 | 3.600 |
RAZS/240S | 15 - 50 | 240 | 8 | 120 | 2.880 |
RAZS/250S | 15 - 50 | 250 | 8 | 120 | 2.880 |
RAZS/300S | 15 - 50 | 300 | 8 | 110 | 2.640 |
RAZS/350S | 15 - 50 | 350 | 10 | 100 | 2.400 |
RAZS/400S | 15 - 50 | 400 | 10 | 90 | 2.160 |
RAZS/500S | 15 - 50 | 500 | 10 | 65 | 1.560 |

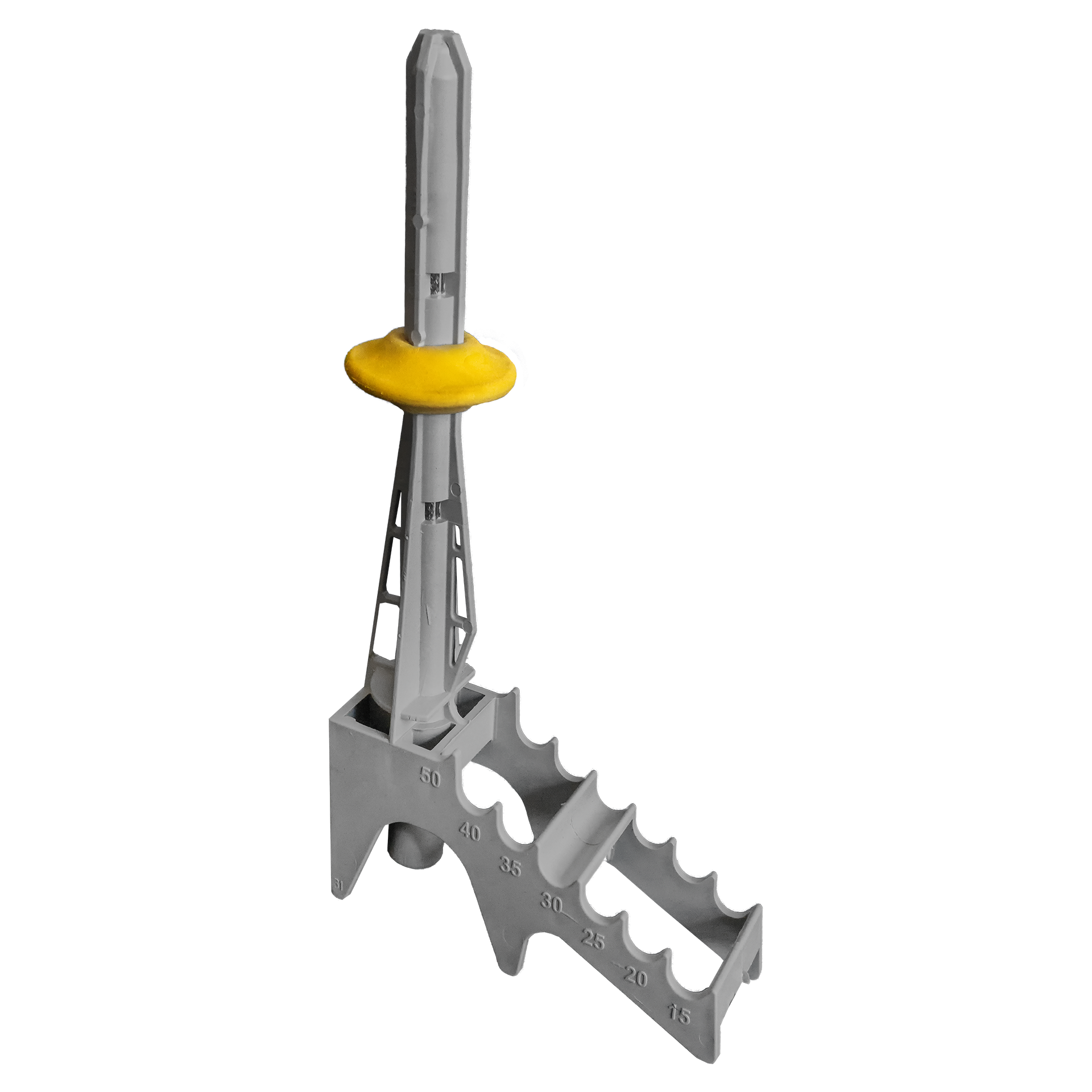

Also available on request as RAZZO-PLUS WU with active sealing ring against water penetration. Tested according to DIN EN 12390-8 (5 bar test pressure).
