Plastic Spacers
UNOCLIP
Sortable spacer for semi- or fully-automatic assembly on rebars in the precast factory. Unoclip with an inner core for two different steel diameters (6-8 mm or 8-10 mm) can also be applied manually to the rebars. The small contact area of the Unoclip on the formwork bases or forms ensures the best possible concrete surface without visible spacers.
| Item no. | Concrete cover mm | For Ø iron mm | Pcs Box | Pcs Pallet | Pcs Octabin |
|---|---|---|---|---|---|
| SCO15/6 | 15 | 6 | 4.000 | 60.000 | - |
| SCO15/6-8 | 15 | 6 - 8 | 4.000 | 60.000 | - |
| SCO20/6 | 20 | 6 | 2.300 | 34.500 | 25.000 |
| SCO20/6-8 | 20 | 6 - 8 | 2.300 | 34.500 | 25.000 |
| SCO25/6 | 25 | 6 | 1.500 | 22.500 | 18.000 |
| SCO25/6-8 | 25 | 6 - 8 | 1.500 | 22.500 | 18.000 |
| SCO30/6-8 | 30 | 6 - 8 | 1.300 | 19.500 | 13.500 |
| SCO30/8-10 | 30 | 8 - 10 | 1.300 | 19.500 | 13.500 |
| SCO35/6 | 35 | 6 | 1.000 | 15.000 | - |
| SCO35/6-8 | 35 | 6 - 8 | 1.000 | 15.000 | - |

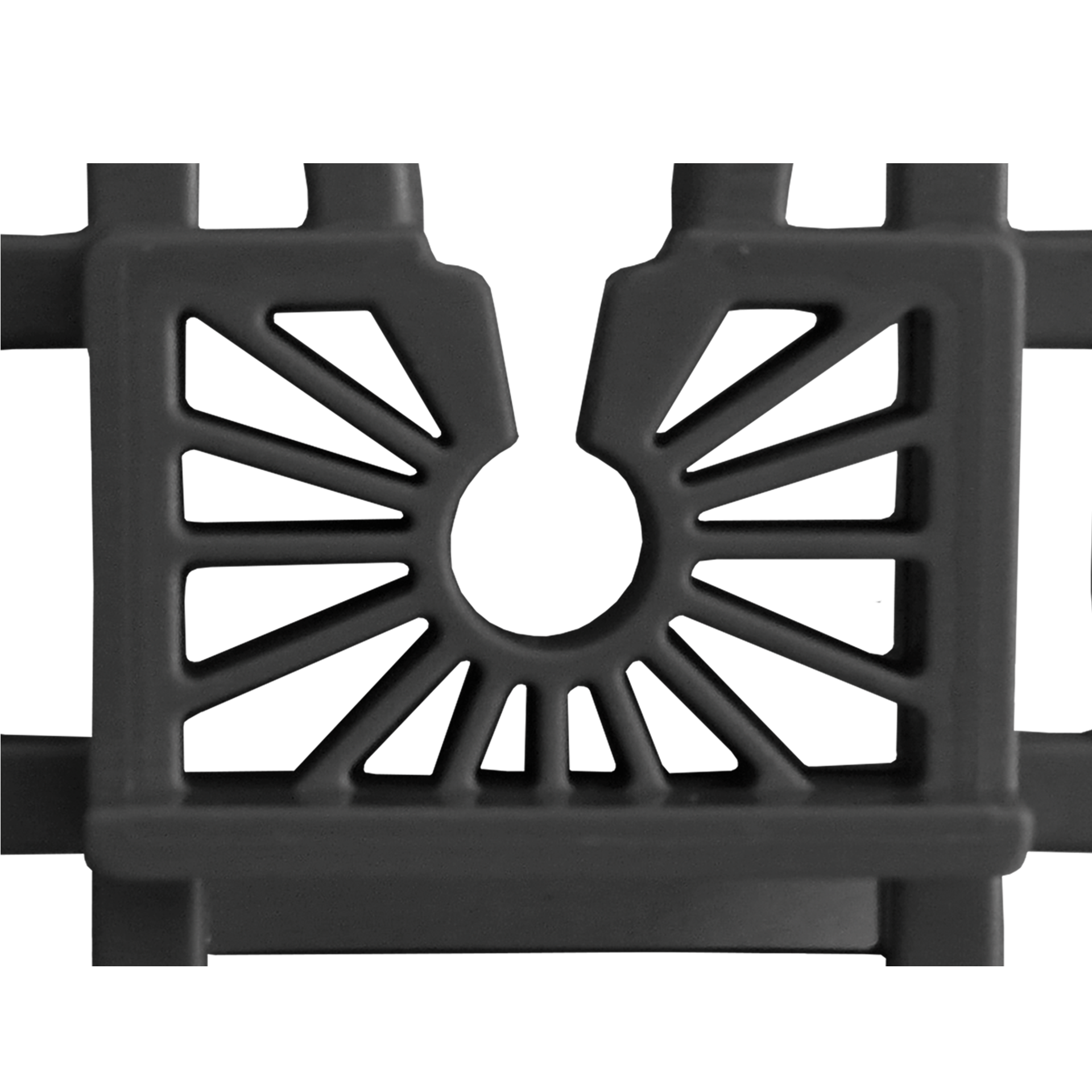

Mounting for iron Ø 6 mm:

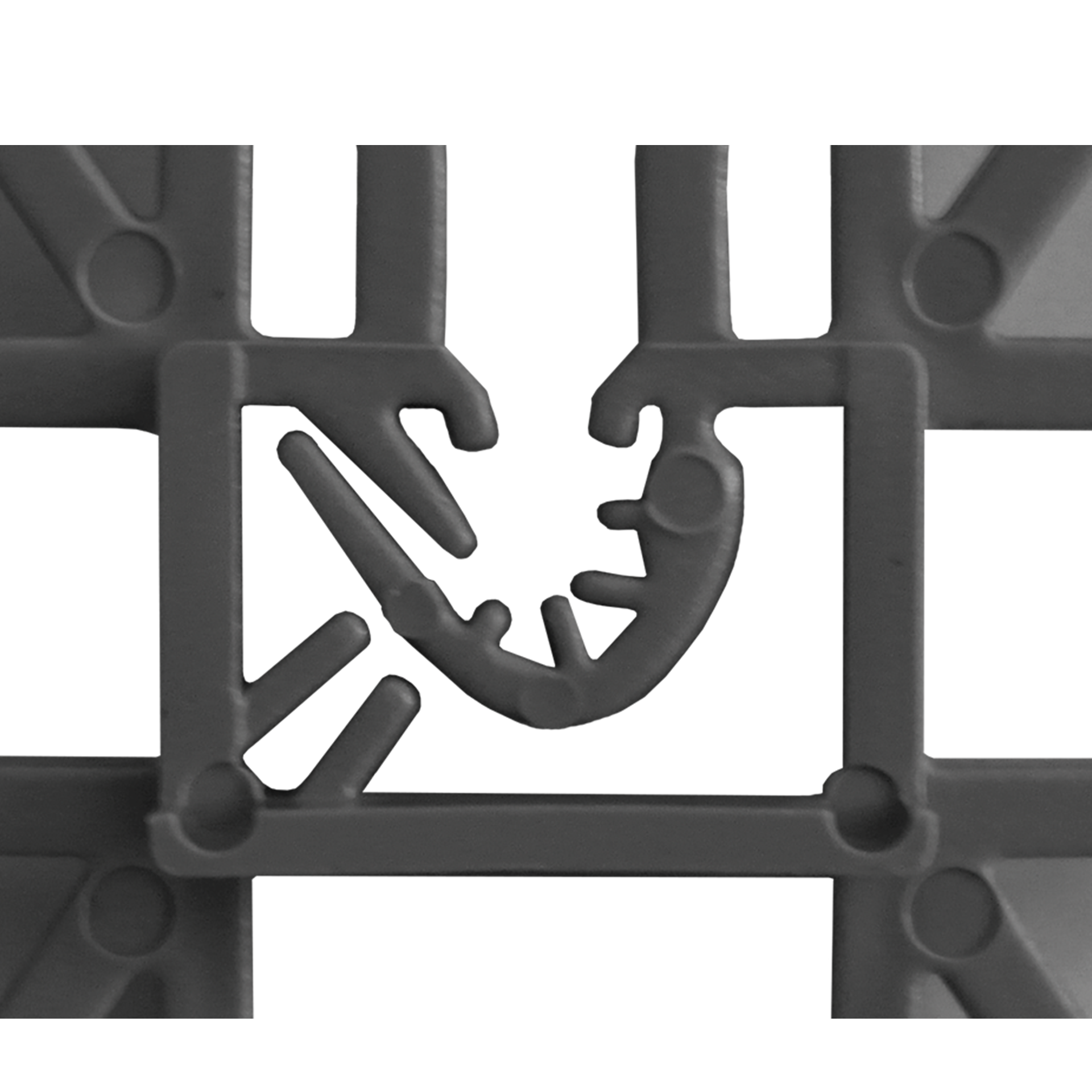

Mounting for iron Ø 6 to 8 mm and Ø 8 to 10 mm:
