Plastic Spacers
DRUPAK VOLL - with cut-outs, plugged
Large-area and extra strong spacer, mainly for lower reinforcement. For all applications where the reinforcement has to be spaced against soft surfaces, e.g. insulation boards. For this purpose, the Drupak is placed with the flat side on the insulation. Extra good concrete flow because of large side and top cut-outs. Can be extended as required with plug-in coupling, production length 1 m.
| Item no. | Concrete cover mm | Length m | m Bundle | m Pallet |
|---|---|---|---|---|
| DPO25/100 | 25 | 1,00 | 36,00 | 3.240,00 |
| DPO25/200 | 25 | 2,00 | 72,00 | 6.480,00 |
| DPO30/100 | 30 | 1,00 | 36,00 | 3.240,00 |
| DPO30/200 | 30 | 2,00 | 72,00 | 6.480,00 |
| DPO35/100 | 35 | 1,00 | 36,00 | 2.592,00 |
| DPO35/200 | 35 | 2,00 | 72,00 | 5.184,00 |
| DPO40/100 | 40 | 1,00 | 36,00 | 1.728,00 |
| DPO40/200 | 40 | 2,00 | 72,00 | 3.456,00 |
| DPO50/100 | 50 | 1,00 | 36,00 | 1.260,00 |
| DPO50/200 | 50 | 2,00 | 72,00 | 2.520,00 |

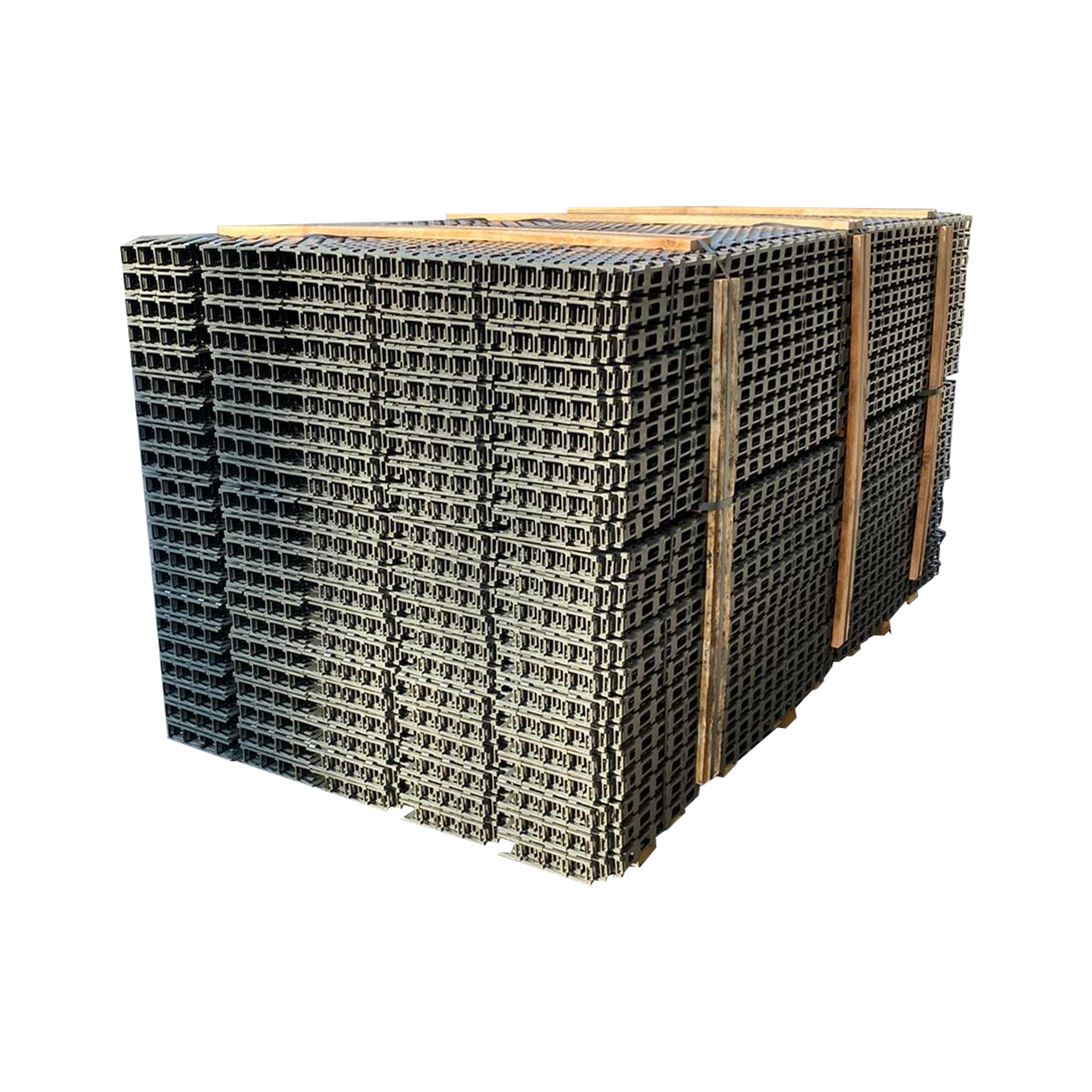

Packaging:
- Due to its special design, the Drupak is ideal for stacking, which results in optimal freight cost savings and storage space utilisation.
- Storage of 3 pallets on top of each other is possible without any problems.
- Up to 54 % more on the pallet compared to Drunterleisten.
