Plastic Spacers
Large-area and extra strong spacer, mainly for lower reinforcement. Extra good concrete flow because of large side and top cut-outs. Only limited suitable for fair-faced concrete and prefabricated slabs. Due to the better tilting stability, we recommend Drupak "2" from a concrete cover of 40 mm. Can be extended as required with plug-in coupling, production length 1 m.
Item no. | Concrete cover mm | Width mm | Length m | m Bundle | m Pallet |
---|---|---|---|---|---|
DPF35/100/2 | 35 | 46 | 1,00 | 30,00 | 1.950,00 |
DPF35/200/2 | 35 | 46 | 2,00 | 60,00 | 3.900,00 |
DPF40/100/2 | 40 | 46 | 1,00 | 30,00 | 1.800,00 |
DPF40/200/2 | 40 | 46 | 2,00 | 60,00 | 3.600,00 |
DPF45/100/2 | 45 | 46 | 1,00 | 30,00 | 1.500,00 |
DPF45/200/2 | 45 | 46 | 2,00 | 60,00 | 3.000,00 |
DPF50/100/2 | 50 | 46 | 1,00 | 30,00 | 1.500,00 |
DPF50/200/2 | 50 | 46 | 2,00 | 60,00 | 3.000,00 |

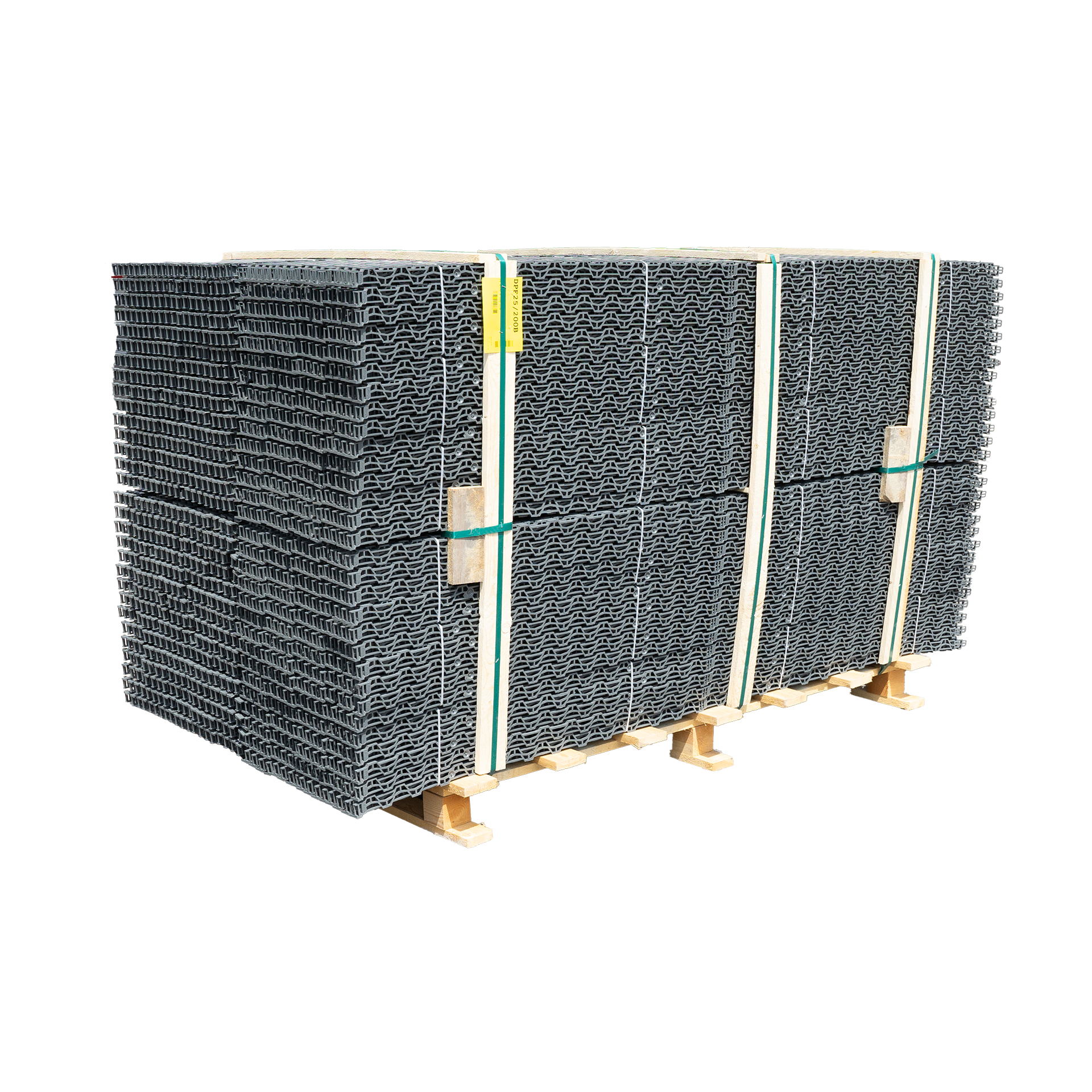

Packaging:
